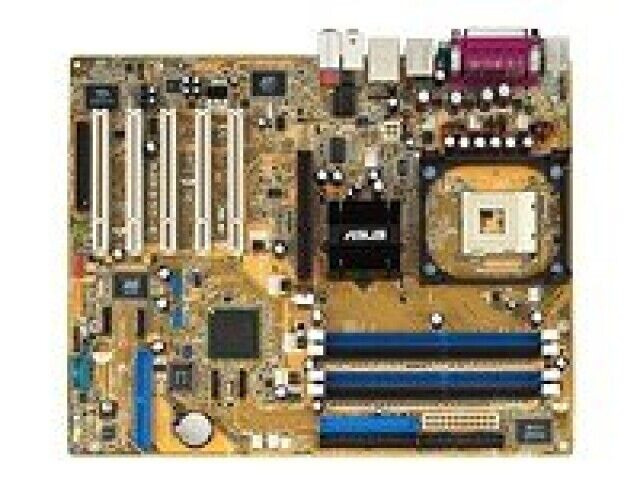

Asus Computer ATX MBD 865PE S478 800FSB-ETH SATA RAID 8X 6CH AUD (P4P800-E DLX)
This motherboard is designed for high-performance computing and multimedia applications, featuring the Intel 865PE chipset, which supports processors with a front-side bus (FSB) speed of up to 800 MHz. It is built for systems that require robust performance, including support for dual-channel DDR400 memory, which doubles the bandwidth of the system memory, thereby enhancing overall system performance. The motherboard also supports Intel Hyper-Threading Technology, allowing for improved multitasking capabilities.
The P4P800-E DLX model includes a variety of advanced features aimed at improving user experience and system efficiency. These include ASUS Hyper Path Technology, which optimizes the performance of the Intel 865PE chipset to deliver superior performance compared to other solutions in its class. Additionally, it features AI Audio via an 8-channel CODEC, providing high-quality audio output and automatic detection of audio peripherals to prevent incorrect connections.
The motherboard also includes AI NET technology with Gigabit LAN support via the Marvell 88E8001 controller, which includes a Virtual Cable Tester (VCT) for diagnosing network issues. CrashFree BIOS 2 allows for easy recovery from BIOS corruption, while Q-Fan Technology adjusts CPU fan speeds based on system load and temperature to reduce noise and improve user comfort.
ASUS POST Reporter provides voice warnings during the Power-On Self-Test (POST) to alert users of any system errors. AI Overclocking Tuner in the BIOS allows for quick overclocking up to 30%, depending on the CPU and RAM, with automatic optimization of parameters for both performance and stability. The motherboard also includes flexible CPU core voltage adjustments in 0.025V increments and Stepless Frequency Selection (SFS) up to 400 MHz at 1 MHz increments.
ASUS C.P.R. (CPU Parameter Recall) allows users to recall previous CPU settings, and the Wi-Fi slot supports optional wireless LAN upgrades with the ASUS Wireless LAN add-on card. The motherboard offers Multi-RAID functionality with a Promise RAID controller supporting RAID 0, 1, and 0+1 configurations. It also includes an IEEE 1394 interface for high-speed digital connectivity with audio/video devices and an S/PDIF-out port for connecting to external home theater systems.
The AGP8X (AGP 3.0) interface provides enhanced graphics performance with high bandwidth up to 2.12GB/s. The ICH5R South Bridge integrates Serial ATA (SATA) and RAID 0, 1 functions, delivering fast data transfer speeds up to 150MB/s. The motherboard supports up to eight USB 2.0 ports, offering fast data transfer speeds up to 480Mb/s and backward compatibility with USB 1.1 devices.
Brand: Asus
Model: P4P800-E DLX
Specifications: ATX form factor, Intel 865PE chipset, 800/533/400 MHz FSB, Dual-Channel DDR400 memory support, Intel Hyper-Threading Technology, Gigabit LAN, IEEE 1394 interface, AGP8X (AGP 3.0), ICH5R South Bridge with SATA and RAID support
Features: ASUS Hyper Path Technology, AI Audio with 8-channel CODEC, AI NET with Gigabit LAN and VCT, CrashFree BIOS 2, Q-Fan Technology, ASUS POST Reporter, AI Overclocking Tuner, Flexible CPU Core Voltage Adjustments, SFS up to 400MHz at 1MHz increments, ASUS C.P.R., Wi-Fi slot for optional wireless LAN upgrade, Multi-RAID with Promise controller supporting RAID 0/1/0+1, S/PDIF-out port for digital audio output
This motherboard is designed for high-performance computing and multimedia applications, featuring the Intel 865PE chipset, which supports processors with a front-side bus (FSB) speed of up to 800 MHz. It is built for systems that require robust performance, including support for dual-channel DDR400 memory, which doubles the bandwidth of the system memory, thereby enhancing overall system performance. The motherboard also supports Intel Hyper-Threading Technology, allowing for improved multitasking capabilities.
The P4P800-E DLX model includes a variety of advanced features aimed at improving user experience and system efficiency. These include ASUS Hyper Path Technology, which optimizes the performance of the Intel 865PE chipset to deliver superior performance compared to other solutions in its class. Additionally, it features AI Audio via an 8-channel CODEC, providing high-quality audio output and automatic detection of audio peripherals to prevent incorrect connections.
The motherboard also includes AI NET technology with Gigabit LAN support via the Marvell 88E8001 controller, which includes a Virtual Cable Tester (VCT) for diagnosing network issues. CrashFree BIOS 2 allows for easy recovery from BIOS corruption, while Q-Fan Technology adjusts CPU fan speeds based on system load and temperature to reduce noise and improve user comfort.
ASUS POST Reporter provides voice warnings during the Power-On Self-Test (POST) to alert users of any system errors. AI Overclocking Tuner in the BIOS allows for quick overclocking up to 30%, depending on the CPU and RAM, with automatic optimization of parameters for both performance and stability. The motherboard also includes flexible CPU core voltage adjustments in 0.025V increments and Stepless Frequency Selection (SFS) up to 400 MHz at 1 MHz increments.
ASUS C.P.R. (CPU Parameter Recall) allows users to recall previous CPU settings, and the Wi-Fi slot supports optional wireless LAN upgrades with the ASUS Wireless LAN add-on card. The motherboard offers Multi-RAID functionality with a Promise RAID controller supporting RAID 0, 1, and 0+1 configurations. It also includes an IEEE 1394 interface for high-speed digital connectivity with audio/video devices and an S/PDIF-out port for connecting to external home theater systems.
The AGP8X (AGP 3.0) interface provides enhanced graphics performance with high bandwidth up to 2.12GB/s. The ICH5R South Bridge integrates Serial ATA (SATA) and RAID 0, 1 functions, delivering fast data transfer speeds up to 150MB/s. The motherboard supports up to eight USB 2.0 ports, offering fast data transfer speeds up to 480Mb/s and backward compatibility with USB 1.1 devices.
Brand: Asus
Model: P4P800-E DLX
Specifications: ATX form factor, Intel 865PE chipset, 800/533/400 MHz FSB, Dual-Channel DDR400 memory support, Intel Hyper-Threading Technology, Gigabit LAN, IEEE 1394 interface, AGP8X (AGP 3.0), ICH5R South Bridge with SATA and RAID support
Features: ASUS Hyper Path Technology, AI Audio with 8-channel CODEC, AI NET with Gigabit LAN and VCT, CrashFree BIOS 2, Q-Fan Technology, ASUS POST Reporter, AI Overclocking Tuner, Flexible CPU Core Voltage Adjustments, SFS up to 400MHz at 1MHz increments, ASUS C.P.R., Wi-Fi slot for optional wireless LAN upgrade, Multi-RAID with Promise controller supporting RAID 0/1/0+1, S/PDIF-out port for digital audio output
