ASRock Socket AM3/AMD 880G/ATI Hybrid CrossFireX/USB 3.0/A&V&GbE/MATX Motherboard 880GMH/USB3
|
Prices shown may differ from Amazon due to dynamic updates, promotions, inventory changes, or item condition (new/used/refurbished).
The final price and availability are confirmed on Amazon at checkout.
Learn more.
|
|
Buy on Amazon
|
|
|
As an Amazon Associate, we earn from qualifying purchases. Prices and availability change frequently;
the final terms are displayed on Amazon’s website at the time of purchase.
Pricing Policy.
|
|
| Brand: | ASRock |

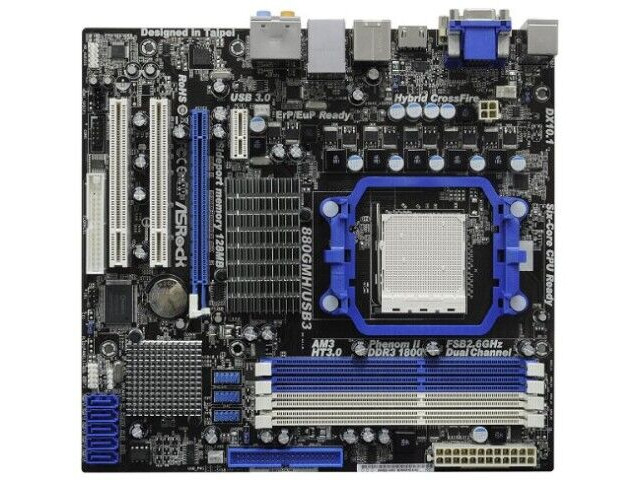

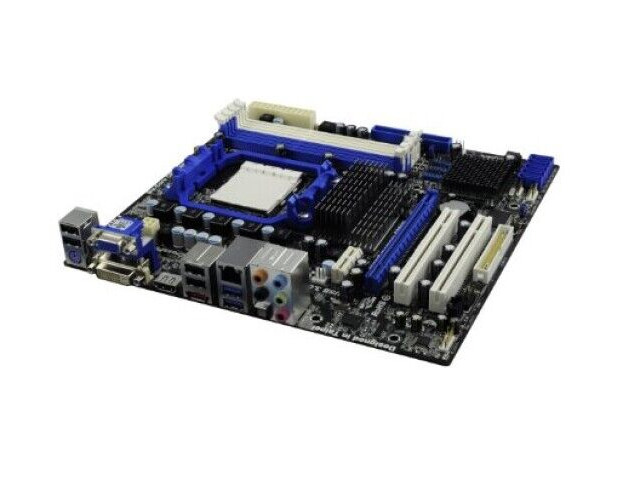

ASRock Socket AM3/AMD 880G/ATI Hybrid CrossFireX/USB 3.0/A&V&GbE/MATX Motherboard 880GMH/USB3
This motherboard is designed for users looking to build a mid-range desktop system with support for AMD's AM3 socket processors. It features the AMD 880G chipset, which integrates a graphics core and provides support for high-speed USB 3.0, making it ideal for users who want to take advantage of newer storage and peripheral technologies. The board supports a wide range of AMD processors, including the Phenom II and Athlon II series, and is ready for six-core CPUs. It also includes Hyper-Transport 3.0 technology and a front-side bus speed of 5.2 GT/s for improved performance.
The motherboard offers robust memory support with four DDR3 DIMM slots, allowing for up to 16 GB of dual-channel memory. This makes it suitable for multitasking and more demanding applications. The integrated graphics solution, AMD Radeon HD 4250 with 512MB shared memory, provides support for Full HD playback through DVI and HDMI ports, making it a good choice for users who want to avoid purchasing a separate graphics card.
For expansion, the board includes one PCIe 2.0 x16 slot for graphics cards, one PCIe 2.0 x1 slot, and two PCI slots. It also features five SATA2 ports with support for RAID configurations, including RAID 0, 1, 10, and JBOD, which is useful for users who need data redundancy or increased storage performance. The motherboard includes an eSATA2 port for external storage devices and a Realtek ALC892 7.1-channel audio codec for high-quality sound output.

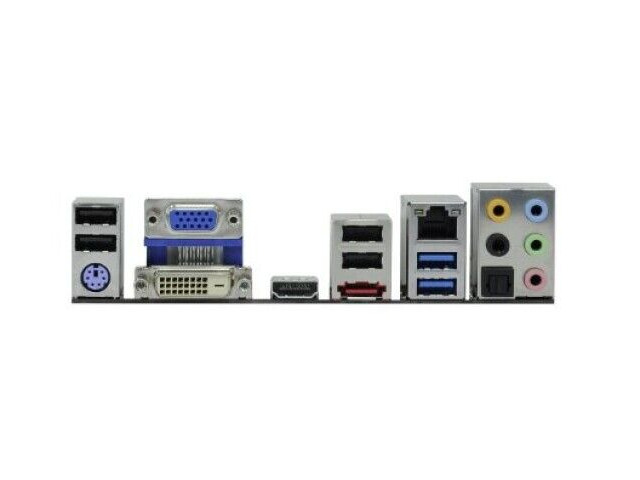

Networking capabilities are provided by a Realtek RTL8111DL Gigabit Ethernet controller, ensuring fast and reliable internet connectivity. The board also includes a variety of ports, such as USB 2.0 and USB 3.0 ports, VGA, DVI, HDMI, PS/2, optical SPDIF out, and an RJ45 LAN port. These ports make it easy to connect peripherals and external devices.
The power requirements are met by a 24-pin main power connector and a 4-pin CPU power connector, ensuring stable operation under various workloads.
Brand: ASRock
Model: 880GMH/USB3
Specifications: Socket AM3; AMD 880G & SB710 chipset; Supports AMD Phenom II X6/X4/X3/X2 (except 920 /940), Athlon II X4 /X3 /X2, Sempron processors; Hyper-Transport 3.0; FSB 5.2 GT/s; 4x DDR3 DIMM slots (up to 16 GB); Dual-channel memory; PCIe 2.0 x16 slot; PCIe 2.0 x1 slot; 2x PCI slots; 5x SATA2 ports with RAID support; eSATA2 port; Realtek ALC892 audio codec; Integrated AMD Radeon HD4250 graphics with shared memory; Realtek RTL8111DL Gigabit Ethernet; USB 3.0 port; HDMI/DVI/VGA outputs
Features: Supports ATI Hybrid CrossFireX technology; Full HD playback with DVI/HDMI; USB 3.0 connectivity; eSATA2 port; PS/2 port; Optical SPDIF out; RJ45 LAN port; Audio I/O jack
This motherboard is designed for users looking to build a mid-range desktop system with support for AMD's AM3 socket processors. It features the AMD 880G chipset, which integrates a graphics core and provides support for high-speed USB 3.0, making it ideal for users who want to take advantage of newer storage and peripheral technologies. The board supports a wide range of AMD processors, including the Phenom II and Athlon II series, and is ready for six-core CPUs. It also includes Hyper-Transport 3.0 technology and a front-side bus speed of 5.2 GT/s for improved performance.
The motherboard offers robust memory support with four DDR3 DIMM slots, allowing for up to 16 GB of dual-channel memory. This makes it suitable for multitasking and more demanding applications. The integrated graphics solution, AMD Radeon HD 4250 with 512MB shared memory, provides support for Full HD playback through DVI and HDMI ports, making it a good choice for users who want to avoid purchasing a separate graphics card.
For expansion, the board includes one PCIe 2.0 x16 slot for graphics cards, one PCIe 2.0 x1 slot, and two PCI slots. It also features five SATA2 ports with support for RAID configurations, including RAID 0, 1, 10, and JBOD, which is useful for users who need data redundancy or increased storage performance. The motherboard includes an eSATA2 port for external storage devices and a Realtek ALC892 7.1-channel audio codec for high-quality sound output.
Networking capabilities are provided by a Realtek RTL8111DL Gigabit Ethernet controller, ensuring fast and reliable internet connectivity. The board also includes a variety of ports, such as USB 2.0 and USB 3.0 ports, VGA, DVI, HDMI, PS/2, optical SPDIF out, and an RJ45 LAN port. These ports make it easy to connect peripherals and external devices.
The power requirements are met by a 24-pin main power connector and a 4-pin CPU power connector, ensuring stable operation under various workloads.
Brand: ASRock
Model: 880GMH/USB3
Specifications: Socket AM3; AMD 880G & SB710 chipset; Supports AMD Phenom II X6/X4/X3/X2 (except 920 /940), Athlon II X4 /X3 /X2, Sempron processors; Hyper-Transport 3.0; FSB 5.2 GT/s; 4x DDR3 DIMM slots (up to 16 GB); Dual-channel memory; PCIe 2.0 x16 slot; PCIe 2.0 x1 slot; 2x PCI slots; 5x SATA2 ports with RAID support; eSATA2 port; Realtek ALC892 audio codec; Integrated AMD Radeon HD4250 graphics with shared memory; Realtek RTL8111DL Gigabit Ethernet; USB 3.0 port; HDMI/DVI/VGA outputs
Features: Supports ATI Hybrid CrossFireX technology; Full HD playback with DVI/HDMI; USB 3.0 connectivity; eSATA2 port; PS/2 port; Optical SPDIF out; RJ45 LAN port; Audio I/O jack
