Asus ROG Strix Z690 Mini ITX Gaming Motherboard, WiFi Connectivity
|
Prices shown may differ from Amazon due to dynamic updates, promotions, inventory changes, or item condition (new/used/refurbished).
The final price and availability are confirmed on Amazon at checkout.
Learn more.
|
|
Buy on Amazon
|
|
|
As an Amazon Associate, we earn from qualifying purchases. Prices and availability change frequently;
the final terms are displayed on Amazon’s website at the time of purchase.
Pricing Policy.
|
|
| Brand: | ASUS |

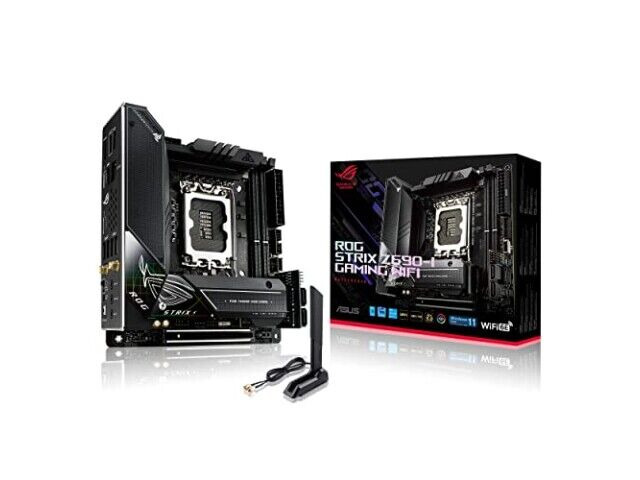

The Asus ROG Strix Z690-I GAMING WIFI is a high-performance Mini ITX motherboard designed for compact gaming and high-end computing builds. It features the Intel Z690 chipset, making it compatible with 12th Gen Intel Core processors that use the LGA 1700 socket. This motherboard is built for users who demand top-tier performance in a small form factor, offering support for the latest technologies such as PCIe 5.0 and DDR5 memory. It is also Windows 11 ready out of the box, ensuring seamless compatibility with the latest operating systems.

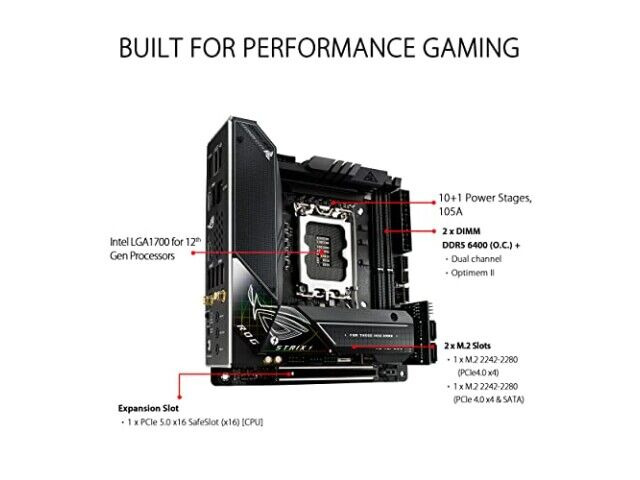

The motherboard includes advanced AI features such as AI Overclocking, AI Cooling, AI Networking (GameFirst VI), and AI Noise Cancellation, which help optimize system performance and user experience automatically. Its robust power solution includes a 10+1 power stage design with a ProCool II power connector, high-quality alloy chokes, and durable capacitors to ensure stable power delivery for multi-core processors.

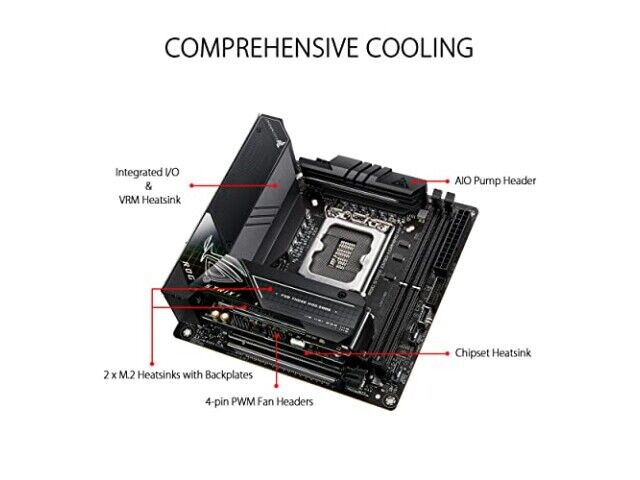

The thermal design is optimized with a VRM heatsink and a triple-decker M.2 heatsink to manage heat efficiently. It also includes hybrid fan headers and Fan Xpert 4 utility for precise temperature control. For networking, it features on-board WiFi 6E and a 2.5 Gb Ethernet port with ASUS LANGuard technology to protect against network damage.

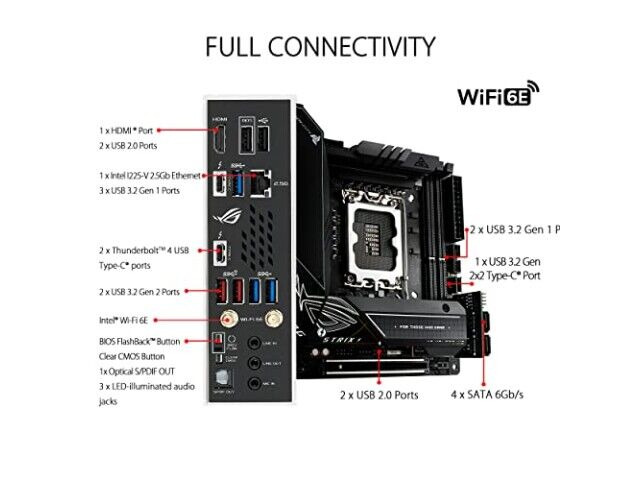

Connectivity options are extensive, including HDMI 2.0 and DisplayPort 1.4 outputs for high-resolution displays, two M.2 slots, USB 3.2 Gen 2x2 Type-C ports, front panel USB 3.2 Gen 2x2 Type-C connectors, and an ITX expansion card that provides four SATA ports, front panel headers, a front speaker header, and an ARGB port for RGB lighting.
The motherboard is designed with DIY-friendly features such as SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, pre-mounted I/O shield, BIOS FlashBack, Clr CMOS button, and FlexKey (Reset, Aura on/off, Direct key). These features make installation and maintenance easier for users.

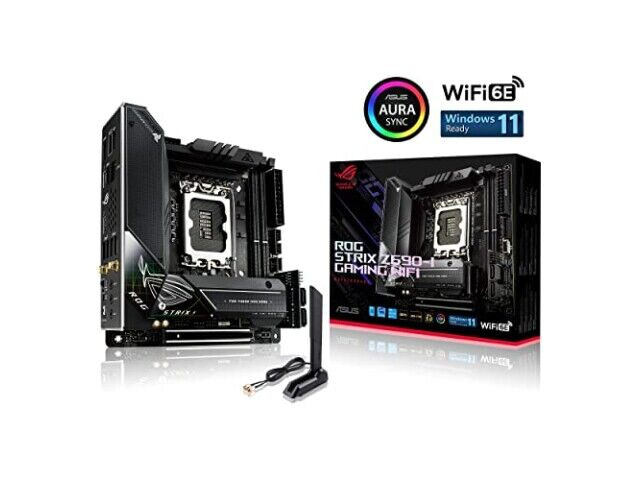

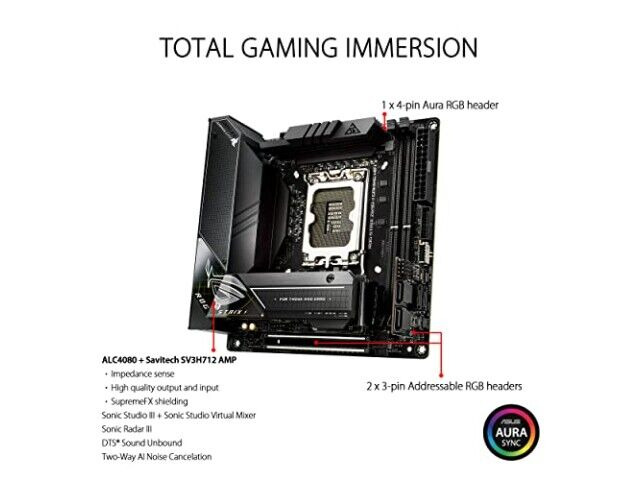

For audio performance, it includes high-fidelity audio with the ALC4080 codec and Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III software for enhanced sound quality. The new ROG Strix aesthetics feature an exclusive Aura Sync RGB lighting system with RGB headers and Gen 2 addressable headers for customizable lighting effects.
Brand: Asus
Model: ROG Strix Z690-I GAMING WIFI
Specifications: Intel Z690 Chipset, Socket LGA-1700, Mini ITX form factor
Features: AI Overclocking, AI Cooling, AI Networking (GameFirst VI), AI Noise Cancellation, 10+1 Power Stages with ProCool II Power Connector, VRM Heatsink, Triple Decker M.2 Heatsink, WiFi 6E, 2.5 Gb Ethernet with ASUS LANGuard, HDMI 2.0 & DisplayPort 1.4 Outputs, USB 3.2 Gen 2x2 Type-C Ports, SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU Socket Lever Protector, Pre-Mount I/O Shield, BIOS FlashBack, Clr CMOS Button, FlexKey (Reset, Aura on/off), High-Fidelity Audio with ALC4080 & Savitech SV3H712 Amplifier, DTS Sound Unbound & Sonic Studio III Software, Aura Sync RGB Lighting
The motherboard includes advanced AI features such as AI Overclocking, AI Cooling, AI Networking (GameFirst VI), and AI Noise Cancellation, which help optimize system performance and user experience automatically. Its robust power solution includes a 10+1 power stage design with a ProCool II power connector, high-quality alloy chokes, and durable capacitors to ensure stable power delivery for multi-core processors.
The thermal design is optimized with a VRM heatsink and a triple-decker M.2 heatsink to manage heat efficiently. It also includes hybrid fan headers and Fan Xpert 4 utility for precise temperature control. For networking, it features on-board WiFi 6E and a 2.5 Gb Ethernet port with ASUS LANGuard technology to protect against network damage.
Connectivity options are extensive, including HDMI 2.0 and DisplayPort 1.4 outputs for high-resolution displays, two M.2 slots, USB 3.2 Gen 2x2 Type-C ports, front panel USB 3.2 Gen 2x2 Type-C connectors, and an ITX expansion card that provides four SATA ports, front panel headers, a front speaker header, and an ARGB port for RGB lighting.
The motherboard is designed with DIY-friendly features such as SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, pre-mounted I/O shield, BIOS FlashBack, Clr CMOS button, and FlexKey (Reset, Aura on/off, Direct key). These features make installation and maintenance easier for users.
For audio performance, it includes high-fidelity audio with the ALC4080 codec and Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III software for enhanced sound quality. The new ROG Strix aesthetics feature an exclusive Aura Sync RGB lighting system with RGB headers and Gen 2 addressable headers for customizable lighting effects.
Brand: Asus
Model: ROG Strix Z690-I GAMING WIFI
Specifications: Intel Z690 Chipset, Socket LGA-1700, Mini ITX form factor
Features: AI Overclocking, AI Cooling, AI Networking (GameFirst VI), AI Noise Cancellation, 10+1 Power Stages with ProCool II Power Connector, VRM Heatsink, Triple Decker M.2 Heatsink, WiFi 6E, 2.5 Gb Ethernet with ASUS LANGuard, HDMI 2.0 & DisplayPort 1.4 Outputs, USB 3.2 Gen 2x2 Type-C Ports, SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU Socket Lever Protector, Pre-Mount I/O Shield, BIOS FlashBack, Clr CMOS Button, FlexKey (Reset, Aura on/off), High-Fidelity Audio with ALC4080 & Savitech SV3H712 Amplifier, DTS Sound Unbound & Sonic Studio III Software, Aura Sync RGB Lighting
