Reservoir and Pump Top for Alphacool Eisstation 80 DC-LT, Pump Not Included

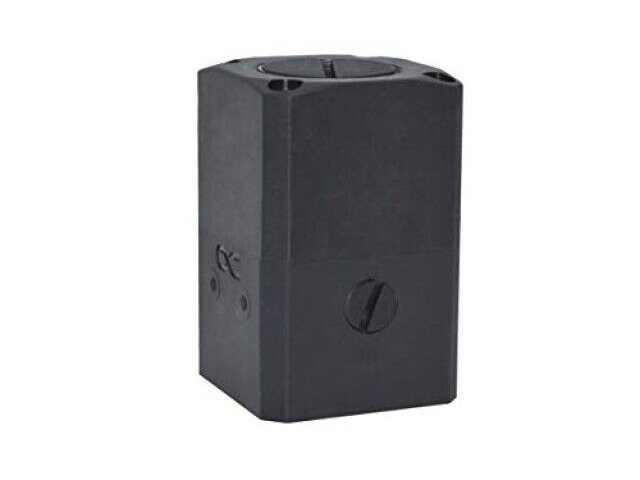

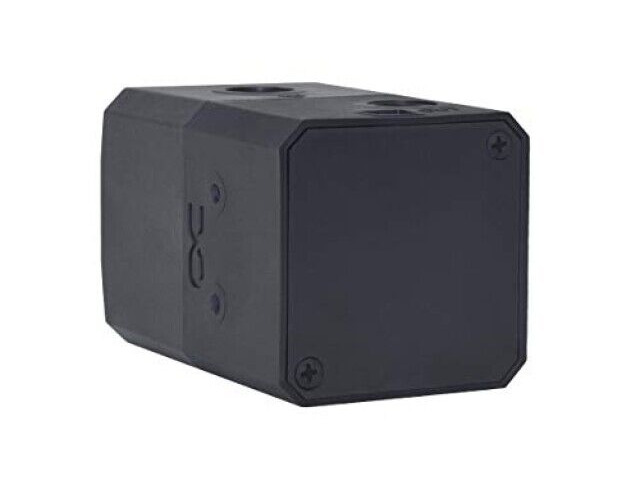

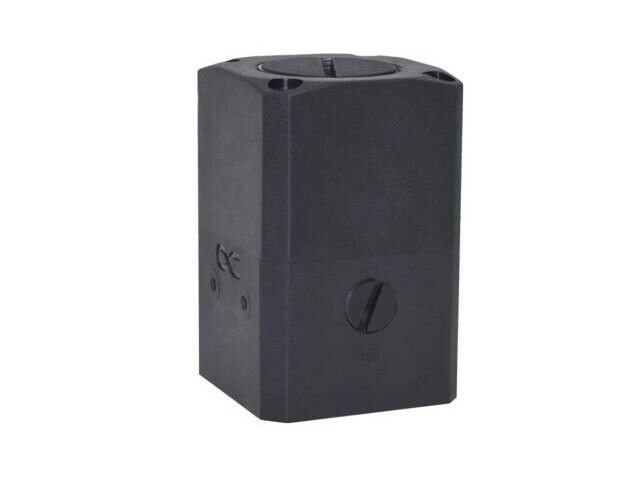

This product is a pump top and reservoir assembly designed for use with the Alphacool Eisstation 80 DC-LT pump. It is intended for water cooling systems, particularly in compact environments such as server racks. The design allows for efficient integration into tight spaces while maintaining durability and performance. The unit includes a removable aluminum plate that enables the addition of a reservoir, making it versatile for different cooling setups. It also features a bubble down filter to reduce air intake, ensuring smoother water flow and better cooling efficiency.

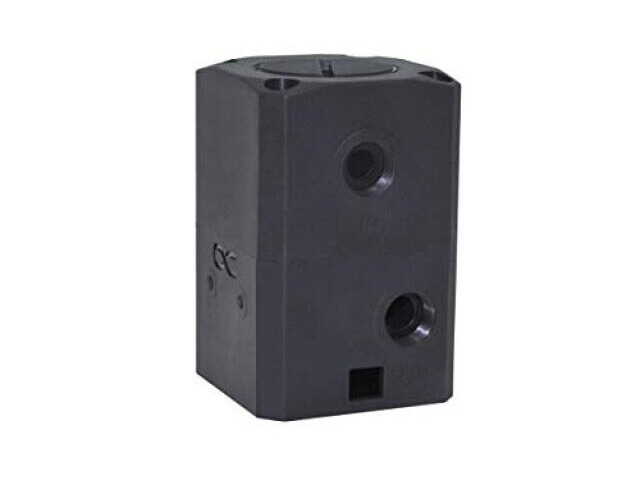

The Eisstation 80 DC-LT is built from acetal, a material known for its strength and resistance to wear. This makes it suitable for long-term use in environments where reliability is critical. The unit is pressure tested up to 1.5 Bar, ensuring it can handle typical water cooling system pressures without failure. It supports three G1/4" connections, allowing for flexible tubing arrangements. The maximum operating temperature of 60°C ensures compatibility with most cooling systems that operate within standard temperature ranges.

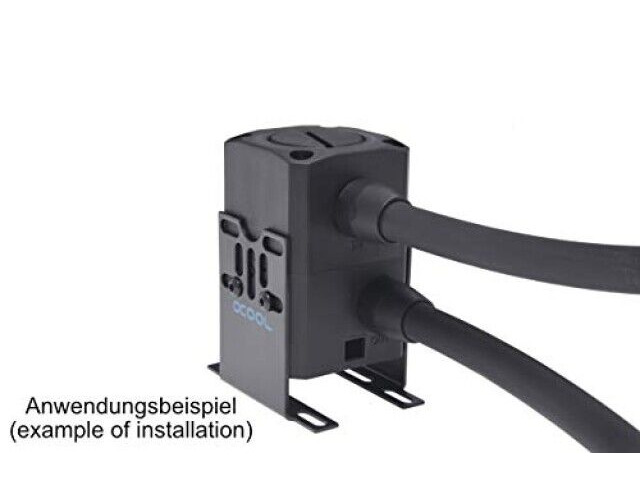

Installation is straightforward, with included mounting feet and a Velcro mat that allows secure attachment without compromising the unit’s compact form factor. The large 25mm filling opening simplifies the process of adding or replacing coolant, reducing the risk of spills or air bubbles. The included tools and screws make setup easier, even for those with limited experience in water cooling systems. The unit can be mounted at angles of 30 or 90 degrees, offering flexibility in how it is integrated into different server or PC cases.

The product comes with a comprehensive set of accessories, including screw plugs, mounting hardware, a hex key, and vibration dampers. These components ensure that the user has everything needed for installation and maintenance. The design also allows for volume adjustment using decoupling feet, which can be useful in optimizing coolant flow based on system requirements. However, the pump itself is not included, so users must have a compatible DC-LT pump on hand before installation.

Brand: Alphacool
Model: 15371

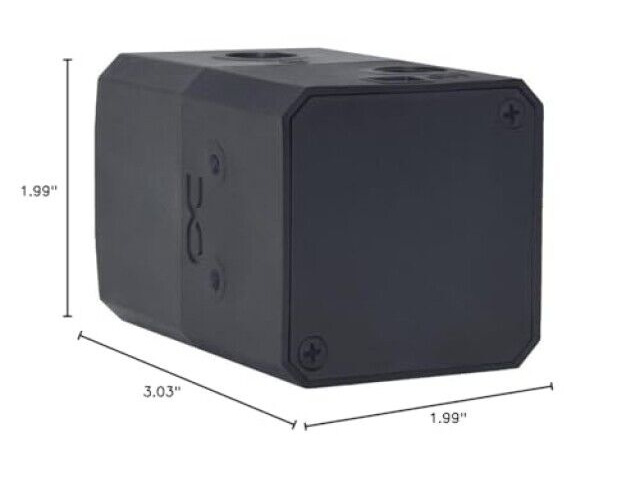

Specifications: Dimensions 50.62 x 50.62 x 77 mm (W x D x H), Net weight 144 g, Max working temperature 60°C, Connections 3x G1/4", Pressure tested 1.5 Bar
Features: Compact design, Reservoir compatibility, Bubble down filter, Durable acetal construction, Adjustable mounting angles, Easy filling port
