MECCANIXITY 2pcs 5 Pin 0.5mm to 2.54mm Right Angle FFC FPC Adapter Board for PCB Converters in DVD TVs Cameras Laptops

MECCANIXITY 2pcs 5 Pin 0.5mm to 2.54mm Right Angle FFC FPC Adapter Board is designed for connecting flexible flat cables or flexible printed circuits in electronic devices. It provides a reliable electrical connection and mechanical fixation, making it suitable for applications that require compact and flexible designs. This adapter is commonly used in digital communication products, portable electronics, and computer peripherals.

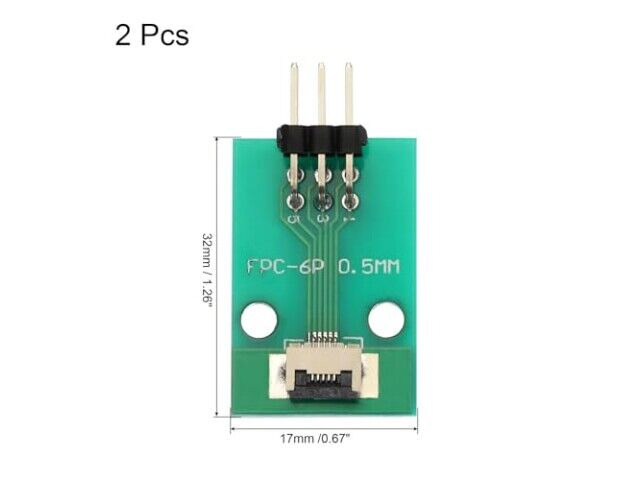

The adapter features a double-sided design with a single flat cable socket on one side and a 2.54mm double-row right-angle pin header on the other. It supports 5 pins with a 0.5mm pitch on the FPC socket side and a 1.0mm pitch on the back side. The overall size is approximately 32x17mm, making it compact enough for use in tight spaces. The design allows for high-density signal transmission and repeated insertion and extraction without damage.

This adapter is compatible with various devices such as DVD TVs, digital cameras, laptops, and game consoles. It is ideal for use in PCB converter boards where space is limited but high connectivity is required. The right-angle design helps in routing cables more efficiently without taking up extra space on the board.

Setting up the adapter involves flipping up the black interface, inserting the flat cable, and testing the connection. It is important to ensure that the flat cable is compatible with the socket size and pin count to avoid any issues during installation. The product comes with two adapters, allowing for use in multiple projects or as a backup.

Brand: MECCANIXITY
Model: 2pcs 5 Pin 0.5mm to 2.54mm Right Angle FFC FPC Adapter Board

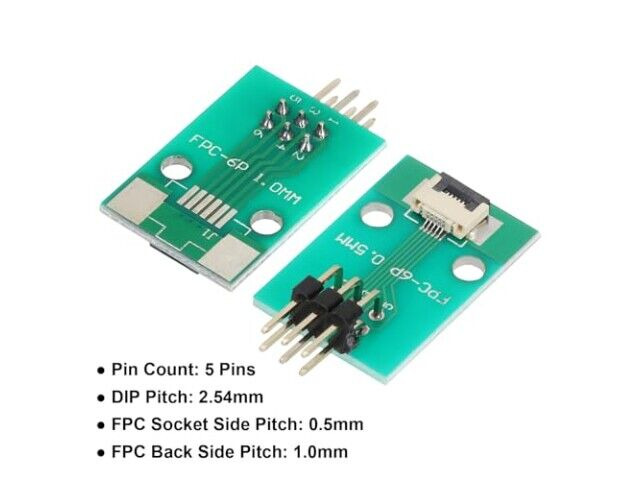

Specifications: 5 Pins; FPC Socket Side Pitch: 0.5mm; FPC Back Side Pitch: 1.0mm; DIP Pitch: 2.54mm; Overall Size: 32x17mm

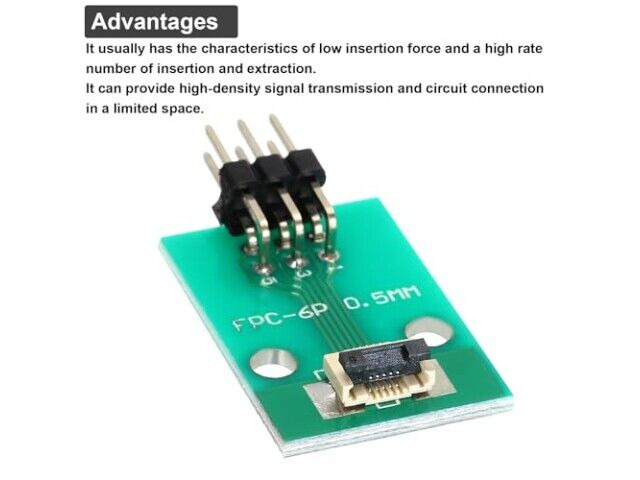

Features: Double-sided design; Right-angle pin header; Compact size; High-density signal transmission; Low insertion force
