MECCANIXITY 24P FPC FFC to DIP Converter Board 0.5mm/1.0mm for LCD 3D Printer Camera DVD TV Laptop Pack of 2

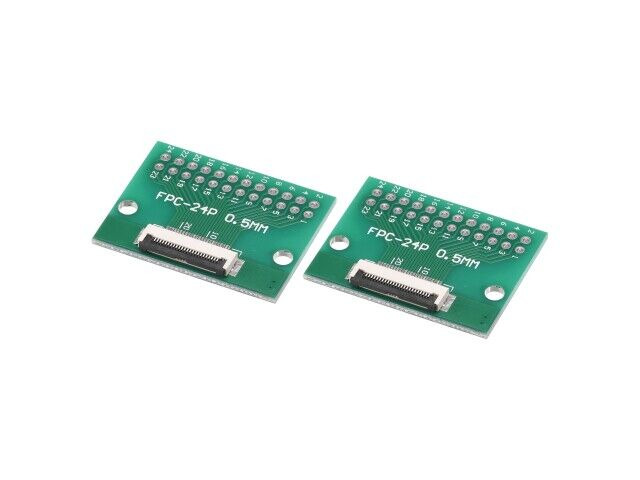

This converter board is designed to interface flat flexible cables (FPC/FFC) with standard DIP (Dual In-line Package) connectors. It is commonly used in compact electronic devices where space is limited, such as laptops, DVD players, and 3D printers. The board allows for easier integration of thin ribbon cables into systems that require larger pin spacing, making it ideal for DIY projects and custom electronics builds. It features a dual-sided design with a 0.5mm pitch on the socket side and a 1.0mm pitch on the back, transitioning to a 2.54mm DIP connector on the other end. This makes it compatible with a wide range of devices that use different pin configurations.

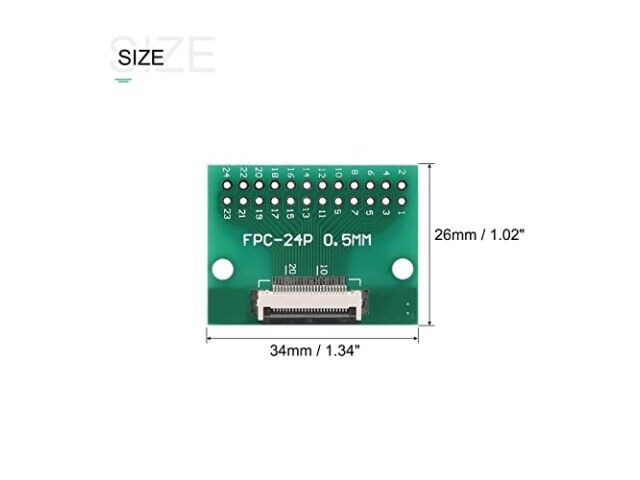

The board measures approximately 34 x 26 x 3.5 mm, making it compact enough to fit into tight spaces without adding bulk. It supports 24-pin connections, which is suitable for many standard applications involving flat cables and PCBs. The design ensures secure contact and reliable signal transmission between the FPC/FFC cable and the DIP connector. Users should note that the dimensions provided are approximate and may vary slightly due to manual measurement. The board is sold in a pack of two, allowing for multiple installations or replacements.

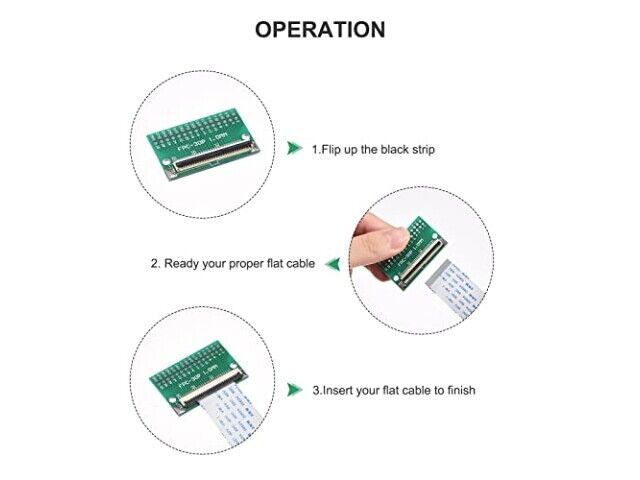

Installation involves flipping up the black interface, inserting the flat cable, and testing the connection. No flat cable is included with the board, so users must source their own based on their specific needs. The board is made from durable materials suitable for repeated use in various electronic setups. It is particularly useful in scenarios where upgrading or modifying existing electronics requires bridging different connector types without replacing entire components.

It is important to ensure that the flat cable being used matches the pitch and pin count of the board to avoid compatibility issues. This converter board does not include any additional components or tools for installation, so users should be prepared to handle the necessary soldering or wiring themselves. It is best suited for individuals with some experience in electronics assembly who need a reliable way to connect FPC/FFC cables to DIP connectors.

Brand: MECCANIXITY
Model: 24P FPC FFC to DIP Converter Board

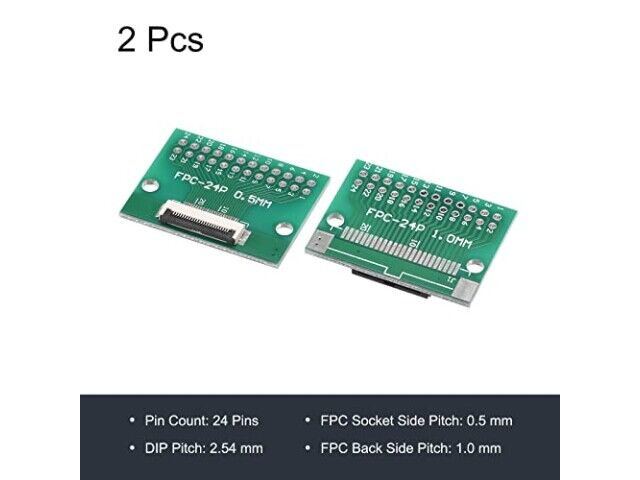

Specifications: 24 pins; Socket side 0.5mm pitch; Back side 1.0mm pitch; DIP 2.54mm; Size 34x26x3.5 mm
Features: Double-sided design; Compact size; Suitable for laptops, DVD players, LCD monitors; Pack of 2
