MECCANIXITY 10P FPC FFC to DIP Converter Board 0.5mm/1.0mm for LCD 3D Printer Camera DVD TV Laptop Pack of 5

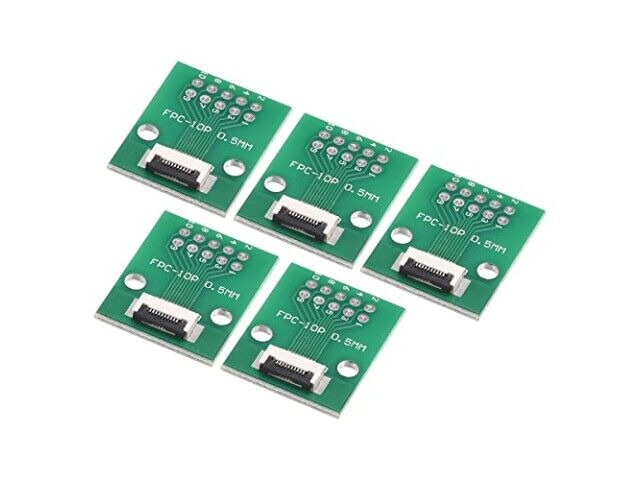

This is a 10-pin FPC/FFC to DIP converter board designed for connecting flat flexible cables to standard DIP headers. It is commonly used in electronics projects where space is limited, such as in laptops, DVD players, LCD monitors, and 3D printers. The board allows for easier integration of ultra-thin flat cables into systems that use larger DIP connectors, making it a useful tool for DIY electronics and repairs. The dual-sided design supports both 0.5 mm and 1.0 mm pitch on the socket side, converting to a 2.54 mm DIP pitch on the other side. It comes in a pack of five, offering flexibility for multiple projects or replacements.

The converter board is ideal for users working with small electronic devices that require precise connections between flat cables and standard PCB headers. Its compact size of 26x20x3.5 mm makes it suitable for tight spaces without compromising functionality. The board is made of durable PCB material and features a straightforward design with no complex components, ensuring reliability during use. It is particularly useful in scenarios where direct connection between FPC/FFC cables and DIP headers is not possible due to size or compatibility issues.

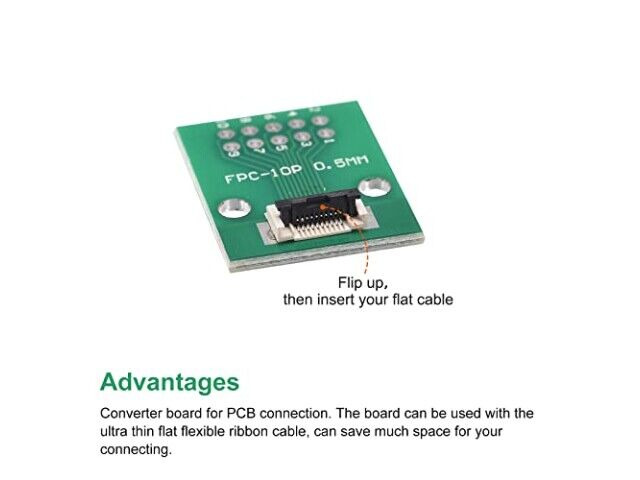

Installation involves flipping up the black interface, inserting the flat cable, and testing the connection. However, the flat cable itself is not included in the package, so users must have the appropriate cable on hand. The board is compatible with various devices that use FPC/FFC cables and DIP headers, including 3D printers, laptops, and TVs. It is a cost-effective solution for those needing to bridge the gap between different connector types without requiring custom PCB fabrication.

The converter board does not include any additional components beyond the PCB itself. Users should be aware that the dimensions provided are approximate and may vary slightly due to manual measurement. This product is best suited for individuals with basic electronics knowledge who are comfortable working with PCBs and flat cables.

Brand: MECCANIXITY
Model: 10P FPC FFC to DIP Converter Board

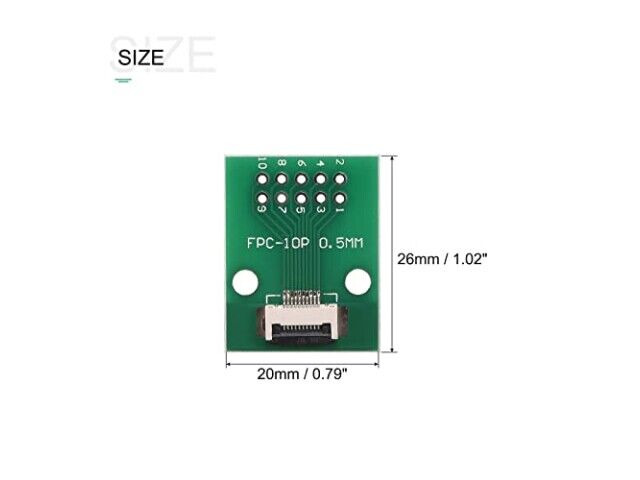

Specifications: 10 pins; Socket side 0.5 mm pitch; Back side 1.0 mm pitch; Converts to DIP 2.54 mm; Size 26x20x3.5 mm; Pack of 5
Features: Double-sided PCB; Compact design; Suitable for laptops, DVD players, LCD monitors; Converts FPC/FFC to DIP headers
