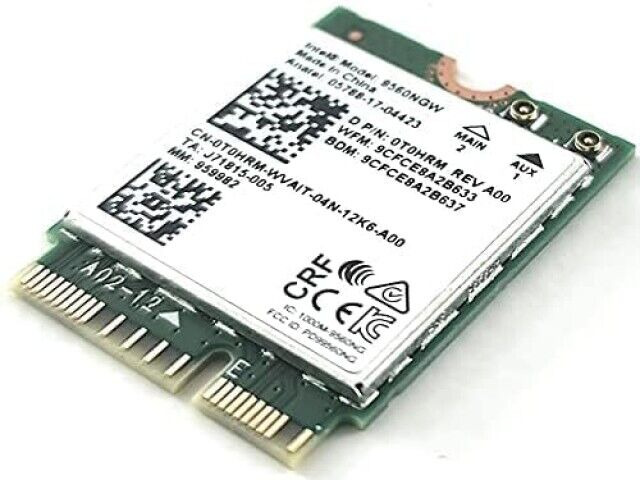

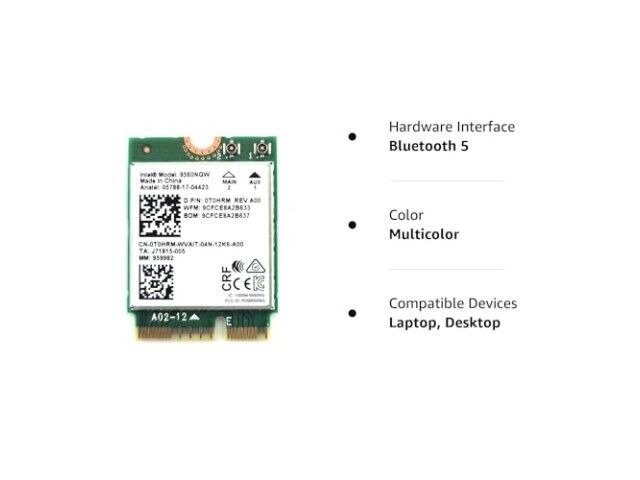

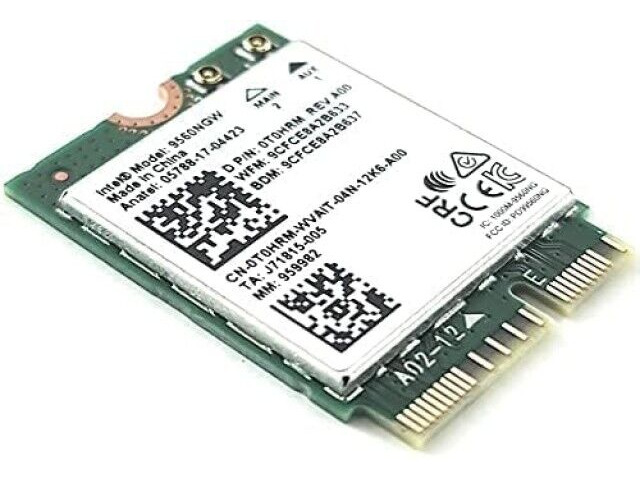

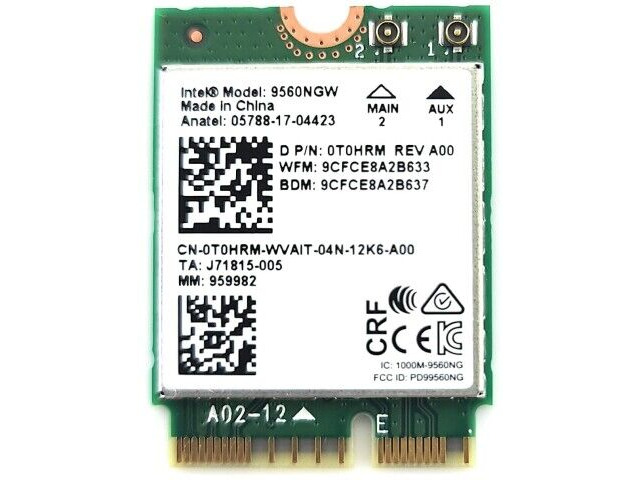

M.2 2230 Intel Wireless-AC 9560, 2X2 Ac+Bt, Gigabit (9560.NGWG.NV)

The Intel Wireless-AC 9560 is a high-performance M.2 2230 wireless adapter designed for systems that support Intel's Connectivity Integration (CNVi) technology. It offers 2x2 802.11ac Wi-Fi with wave 2 support, including 160MHz channels, and Bluetooth 5 for faster data transfer and improved connectivity. This module is ideal for users seeking reliable wireless performance in environments with high network density, such as offices or crowded public spaces.

The adapter is compatible with Windows 10 (64-bit only), Linux (with limited features), and Chrome OS. It requires a system with an Intel SoC that supports CNVi, making it suitable for laptops and devices using Intel Core processors. Users unsure about their system's compatibility are advised to use the Intel 9260 instead or consult their manufacturer for confirmation.

Designed as a CRF (companion RF module), the Intel Wireless-AC 9560 works alongside Intel's integrated wireless solutions to deliver enhanced performance. It features a proprietary CNVio interface for communication with the SoC, inspired by low-power DPHY standards. The module also includes corrections made in April 2017 regarding pin configurations on the M.2 2230 interface.

Installation requires proper system support and careful handling due to its M.2 form factor. It is not suitable for systems without CNVi compatibility. Users should ensure their device meets the hardware requirements before installation to avoid compatibility issues.

Brand: Intel
Model: 9560.NGWG.NV
Specifications: M.2 2230, 2x2 802.11ac Wi-Fi (wave 2), Bluetooth 5, Gigabit speeds, CNVi interface
Features: 160MHz channels, improved battery life, compatible with Windows 10 (64-bit), Linux, Chrome OS
