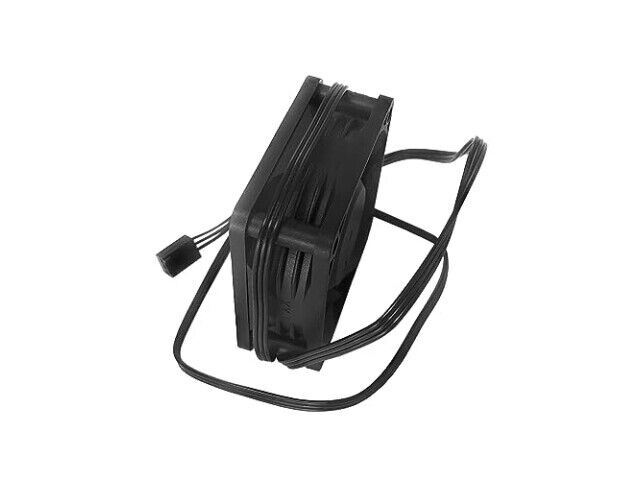

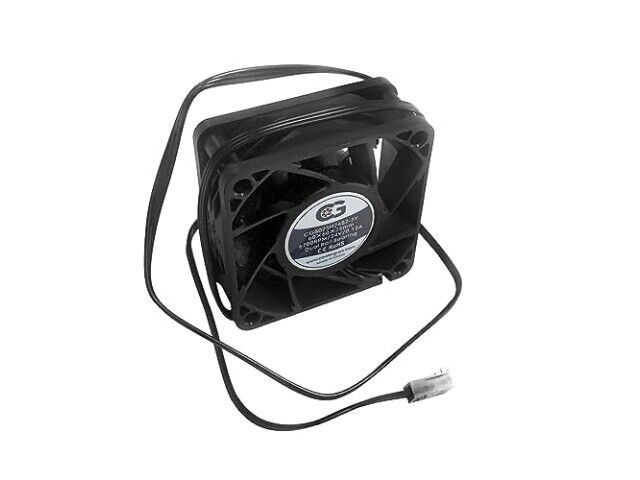

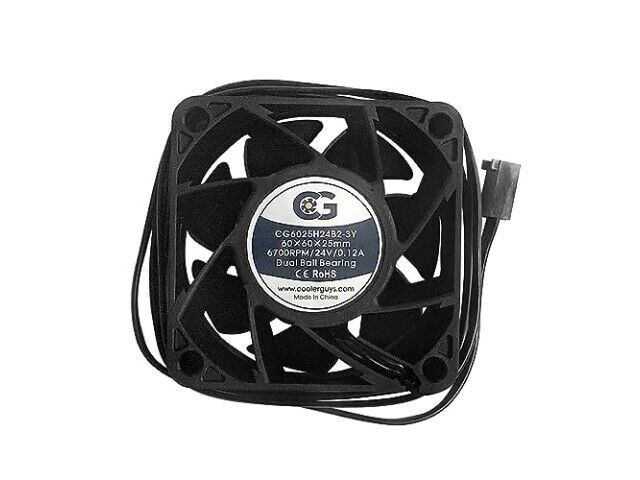

High Speed 24 VDC 3Pin Fan CG6025H24B2-3Y Coolerguys 60x60x25mm

The Coolerguys CG6025H24B2-3Y is a high-speed cooling fan designed for efficient heat dissipation in compact systems. It features a 60x60x25mm size, making it suitable for small form factor builds or devices where space is limited. The fan's 6500 RPM speed ensures strong airflow, which is ideal for cooling components that generate significant heat during operation.

This fan uses a dual ball bearing system, which contributes to its durability and long lifespan. It is built to last up to 67,000 hours under normal operating conditions, reducing the need for frequent replacements. The noise level of 33.6 dBA is relatively quiet for a high-speed fan, making it suitable for environments where noise is a concern.

The fan operates on a 24 VDC power supply and includes a 3-pin connector with a tachometer for speed monitoring. It comes with a 762mm (30in) wire, providing flexibility in installation. The PBT frame and impeller materials ensure the fan can withstand typical operating temperatures ranging from -10℃ to +70℃.

The fan is CE listed and RoHS compliant, ensuring it meets international safety and environmental standards. It is compatible with systems that support 24 VDC fans and can be used in various applications such as PC cooling, industrial equipment, or custom enclosures. The included warranty adds confidence in its reliability and performance.

Brand: Coolerguys
Model: CG6025H24B2-3Y
Specifications: Fan Size: 60x60x25mm; Bearing Type: Dual Ball Bearing; Wire Option: 3 Wire with Tachometer; Connector: 3-Pin 2510 MOLEX; Fan Speed: 6500(RPM)±10%; Airflow: 27.30 CFM; Rated Voltage: 24 VDC; Input Current: 0.12(A)±10%; Noise Level: 33.6 dBA; Static Pressure: 15.78(mmH2O); Lifespan: 67,000 Hours at 25℃; Operation Temperature: -10℃ to +70℃; Corners: Closed; Frame Material: PBT (Black); Impeller Material: PBT (Black)
Features: CE Listed; RoHS Compliant; Three-Year Replacement Warranty
