FPC FFC to DIP Converter Board 14P 0.5mm Socket 1.0mm Back for LCD 3D Printer Camera DVD TV Laptop - MECCANIXITY Pack of 4

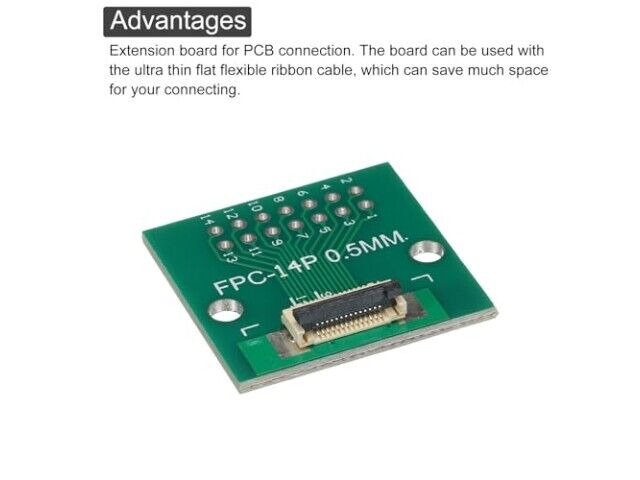

This is a PCB converter board designed to interface between FPC/FFC cables and DIP headers. It is commonly used in electronics projects where space is limited and precise connections are needed. The board allows for the conversion of signals from a flat flexible cable to a standard DIP header, making it easier to integrate with other components. It is especially useful in devices like laptops, DVD players, and 3D printers where compact and reliable connections are essential.

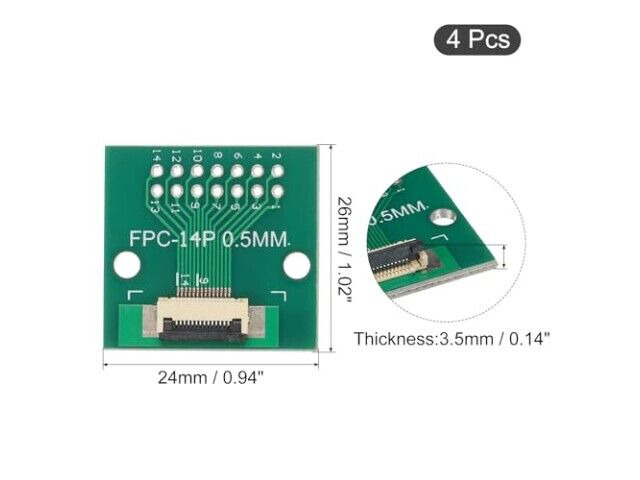

The board features a 14-pin configuration with a 0.5 mm pitch on the FPC socket side and a 1.0 mm pitch on the back side. It connects to a DIP header with a 2.54 mm pitch, ensuring compatibility with standard components. The overall dimensions are approximately 27.5 x 26 x 3.5 mm, making it compact enough for use in tight spaces. The design allows for easy installation and testing, though the flat cable is not included with the board.

This converter board is ideal for DIY electronics enthusiasts and professionals working on compact electronic devices. It can be used in various applications such as upgrading or repairing LCD monitors, integrating sensors into 3D printers, or connecting peripherals to laptops. The board's versatility makes it suitable for both small-scale projects and larger electronic systems that require precise signal routing.

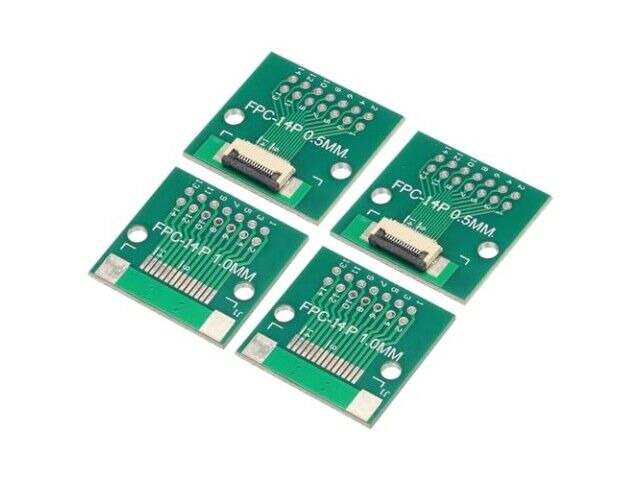

The board is sold in a pack of four, providing multiple units for different projects or replacements. It requires careful handling during installation, as the connection must be secure to avoid signal loss or damage. Due to manual measurement, there may be slight variations in size, up to +/-0.1 inch.

Brand: MECCANIXITY
Model: FPC FFC to DIP Converter Board 14P

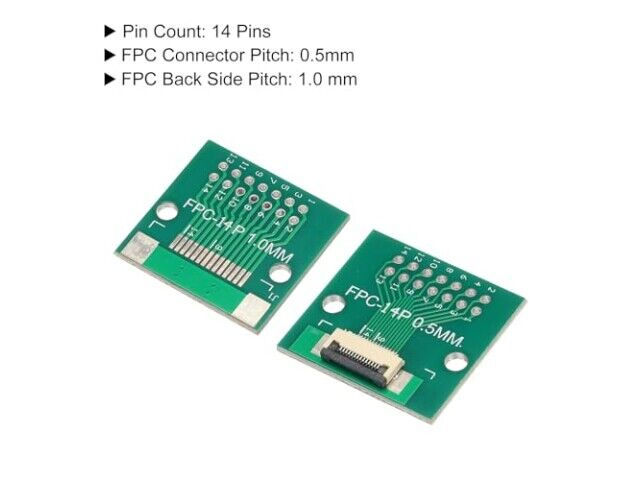

Specifications: 14 Pins, 0.5 mm FPC Socket Pitch, 1.0 mm FPC Back Pitch, 2.54 mm DIP Pitch
Features: Compact Design, FPC/FFC to DIP Conversion, Suitable for Laptops, DVD Players, LCD Monitors
