FFC FPC 30 Pin 0.5mm Pitch PCB Extension Board with 5 x 150mm Flexible Flat Cables - MECCANIXITY

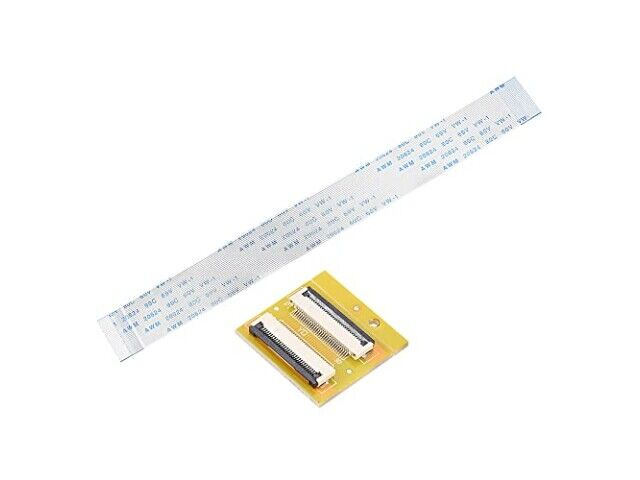

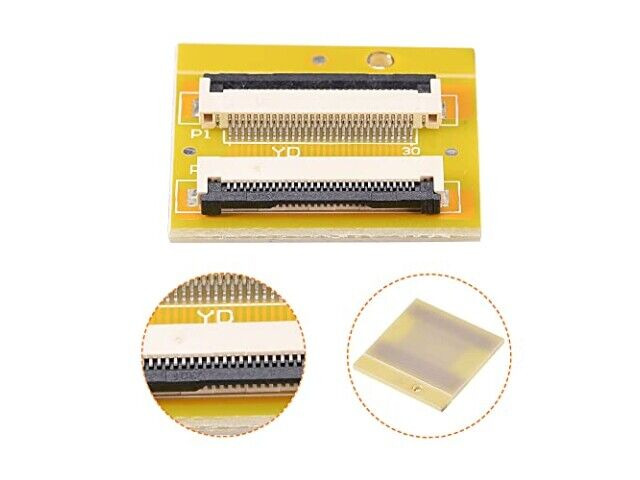

This product is a 30-pin FFC/FPC extension board with five 150mm flexible flat cables, designed for high-density electronic applications. It is commonly used in small electrical devices such as laptops, DVD players, LCD monitors, and audio systems. The board features a flip-up interface and a 0.5mm pitch, making it suitable for precise and compact connections. The cables are ultra-thin and flexible, allowing for space-saving installations in tight spaces.

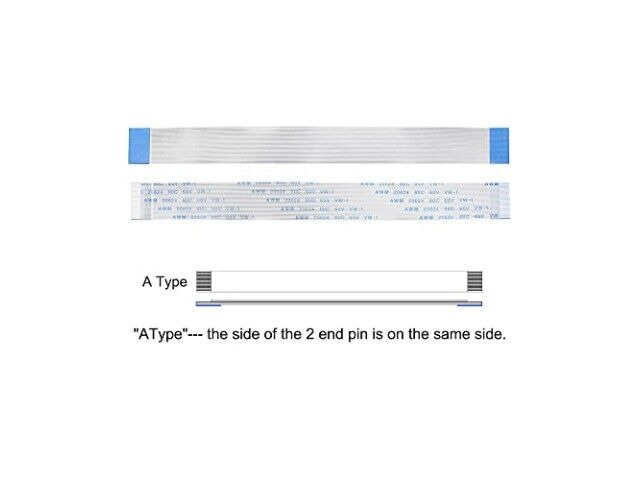

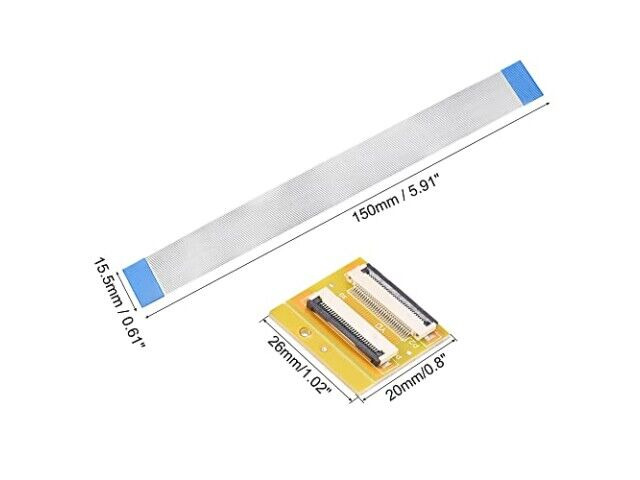

The board measures 26mm x 20mm x 3.5mm (LxWxH), while each cable is 150mm long and 15.5mm wide. The cables have reinforced stiffeners at both ends, which provide stability and strength during use. This makes them ideal for applications where durability is important, such as in DIY projects or industrial setups. The 0.5mm pitch ensures compatibility with a wide range of connectors commonly found in modern electronics.

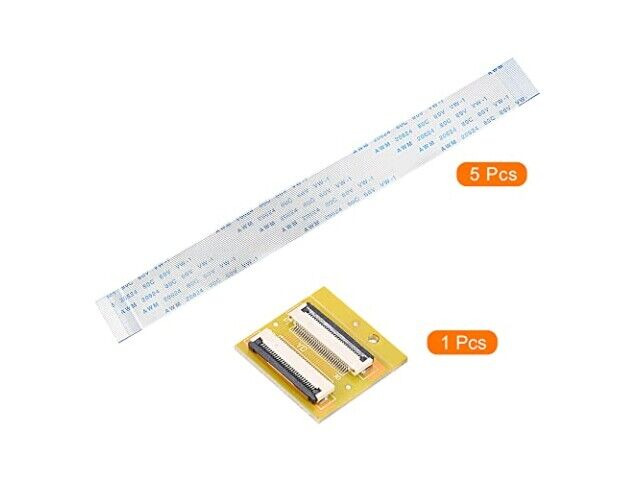

Installation involves connecting the cable to the board first, then securing the board to the equipment, and finally testing the connection. The process is straightforward and suitable for both professionals and hobbyists working on electronics projects. The package includes one board with five cables, making it a cost-effective solution for multiple connections in a single setup.

The product is well-suited for use in devices that require compact and reliable internal wiring solutions. It is particularly useful in scenarios where space is limited, such as in portable electronics or custom-built systems. However, due to the manual measurement process, there may be slight variations in dimensions up to +/-0.1 inch, which users should be aware of when planning their installations.

Brand: MECCANIXITY
Model: FFC FPC 30 Pin 0.5mm Pitch PCB Extension Board
Specifications: 30 pins, 0.5mm pitch, 26mm x 20mm x 3.5mm board size, 150mm cable length
Features: Flip-up interface, reinforced stiffeners on cables, ultra-thin design, space-saving connection solution
