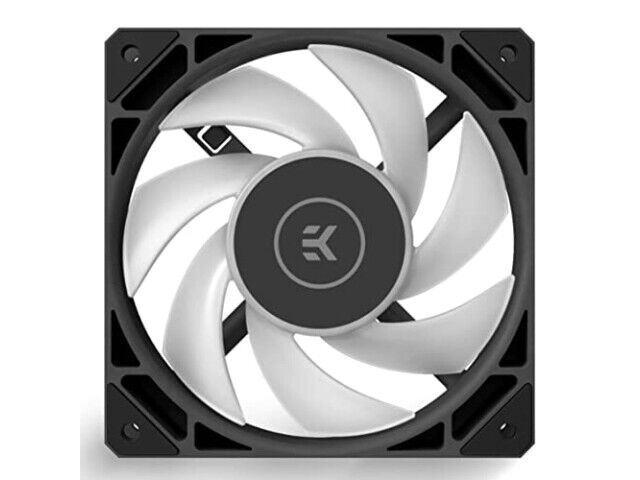

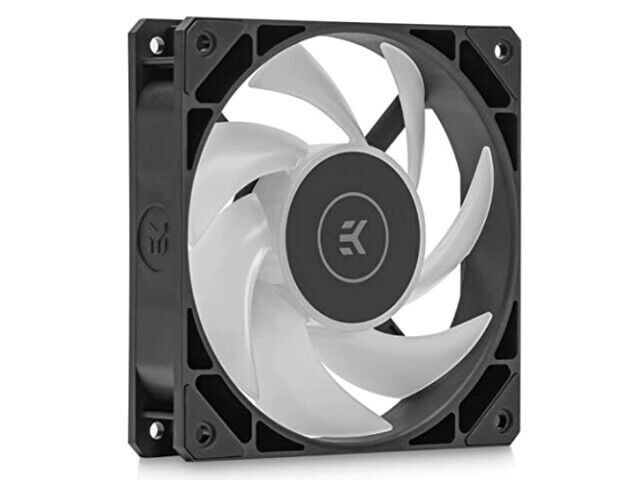

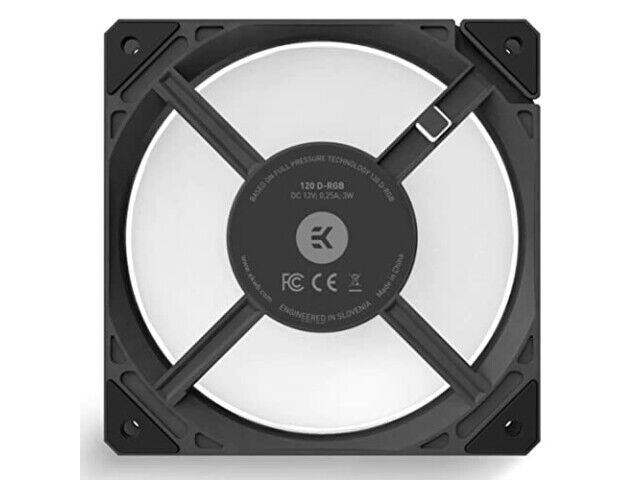

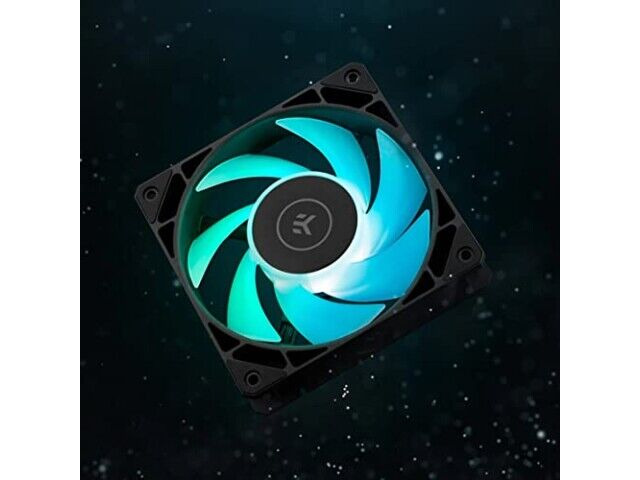

Digital RGB Black EKWB EK-Loop FPT 120mm Fan, 550-2300 RPM

EKWB EK-Loop FPT 120mm Fan is a high-static pressure cooling solution designed for advanced liquid cooling systems. It offers a wide RPM range from 550 to 2300, allowing users to balance between cooling efficiency and noise levels. The fan features digital RGB lighting, which adds a customizable aesthetic to the system while maintaining performance. It is built with a full frame design that enhances static pressure and ensures efficient airflow through radiators.

The fan uses a fluid dynamic bearing (FDB) for durability, with a lifespan of up to 60000 hours at 25°C. It supports PWM control with an extended range of 20-100% duty cycle, enabling precise speed adjustments. The fan also includes an 8-pin Micro-fit connector for daisy-chaining, which simplifies cable management and reduces clutter inside the case. This feature is especially useful in builds with multiple fans or complex cooling setups.

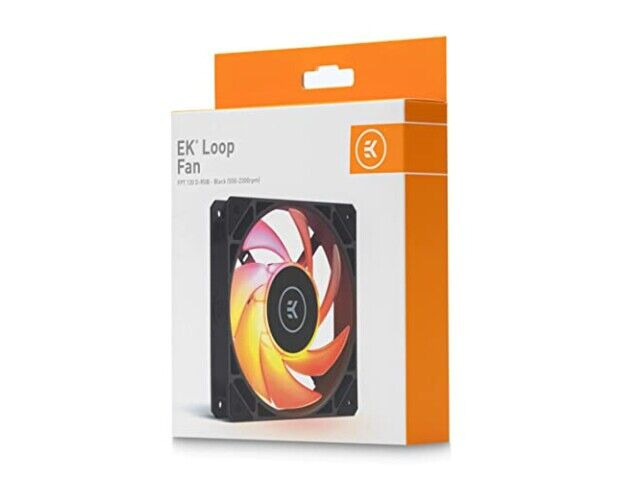

The EK-Loop FPT 120mm Fan comes with a cable extender that includes both a 4-pin PWM header and a 3-pin addressable 5V D-RGB header. This allows for easy integration with motherboards and RGB controllers. The fan cable is 100mm long, and the extender cable is 500mm long, providing flexibility in routing. The package also includes four self-tapping case screws for secure installation.

The fan is ideal for users who prioritize both cooling performance and visual customization in their PC builds. Its high static pressure makes it suitable for radiators in liquid cooling loops, while the RGB lighting adds a dynamic visual element. The fan’s design ensures minimal noise even at maximum RPM, making it suitable for both gaming and professional workstations.

Brand: EKWB
Model: EK-Loop FPT 120 D-RGB
Specifications: 120mm x 120mm x 27mm, 550-2300 RPM, 12V, 3W power draw, FDB bearing, 60000 hrs durability
Features: Digital RGB lighting, PWM control (20-100%), daisy-chaining support, full frame design, cable extender included
