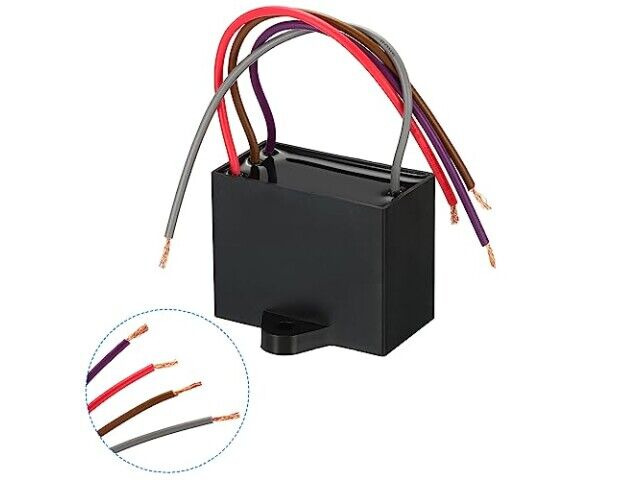

Ceiling Fan Capacitor PATIKIL CBB61, 4.5+5+5uF 250V AC, 4 Wires with 3 Speed Switch for Air Conditioner Motor

The PATIKIL CBB61 ceiling fan capacitor is designed for use in AC motors, particularly as a starting capacitor for fans and air conditioners. It helps maintain motor operation by providing the necessary electrical support during startup. This capacitor is also suitable for range hood fans, air exchange fans, pumps, and generators, making it a versatile component for various motor applications. The product includes a 3-speed switch, which allows users to adjust fan speed according to their needs.

The capacitor features a rated capacity of 4.5+5+5uF at 250V AC, with a tolerance of ±5%. It is built using polypropylene film and a plastic shell, ensuring durability and reliable insulation performance. The device operates efficiently at frequencies of 50/60Hz and is designed to handle high temperatures with good heat dissipation. The 4-wire terminal setup allows for easy installation and compatibility with a wide range of motor systems.

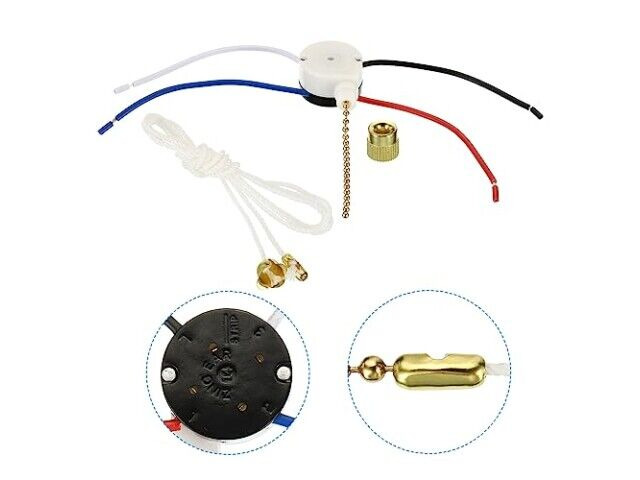

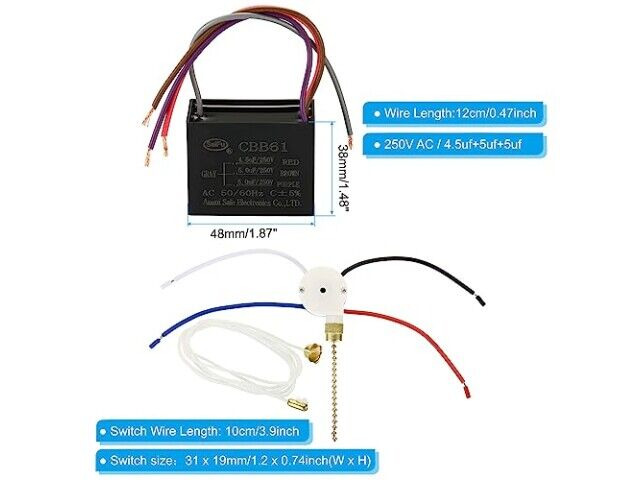

The included 3-speed switch has a rated current/voltage of 3A 250V or 6A 125V, ensuring safe operation under normal conditions. It measures 31 x 19mm and comes with a wire length of 10cm for convenient connection. The capacitor itself has dimensions of 48 x 26 x 38mm and is equipped with wires that are 12cm long. The black shell provides a neat appearance while protecting the internal components from environmental factors.

This capacitor is ideal for residential and commercial applications where reliable motor performance is essential. It can be used in ceiling fans, air conditioners, and other motor-driven appliances that require stable electrical support. The product is designed for easy installation and maintenance, with clear instructions on how to connect it without worrying about polarity. Users should ensure that the capacitor is not subjected to overcurrent or overvoltage conditions to avoid damage.

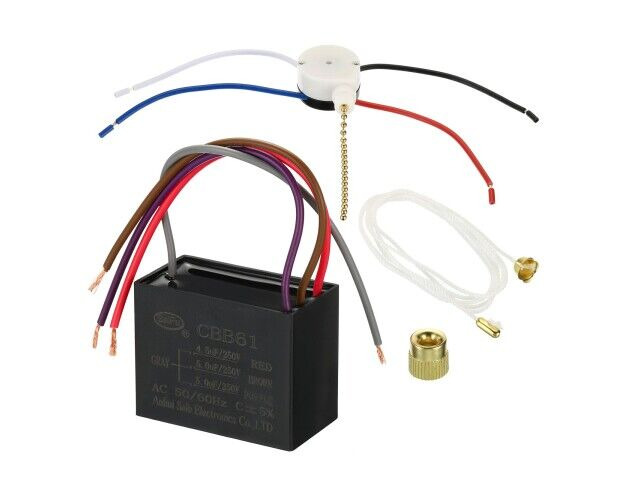

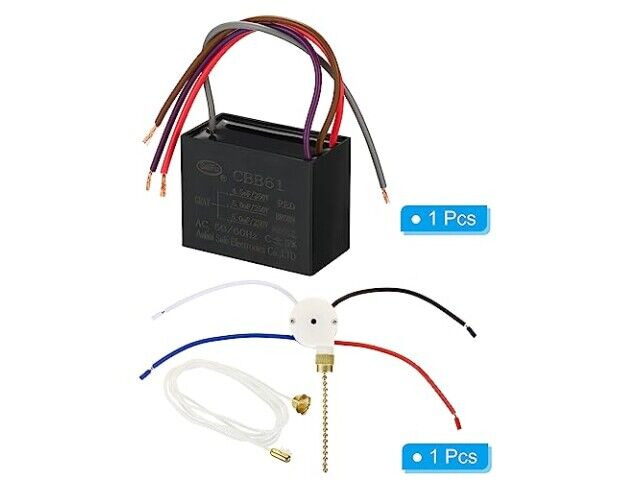

The product comes in a single set that includes one CBB61 capacitor and one 3-speed switch. It is suitable for environments with climatic conditions categorized as 40/85/21, indicating its ability to function in a wide range of temperatures and humidity levels. The compact design makes it easy to fit into tight spaces without compromising performance.

Brand: PATIKIL
Model: CBB61
Specifications: 4.5+5+5uF 250V AC, 4 wires, ±5% tolerance, polypropylene film plastic shell, 48 x 26 x 38mm body size
Features: Small volume, lightweight, low loss, strong overload ability, excellent electrical performance, reliable insulation, good heat dissipation
