ASRock MB ASROCK | Z790M-ITX WiFi Motherboard

ASRock MB ASROCK | Z790M-ITX WiFi Motherboard

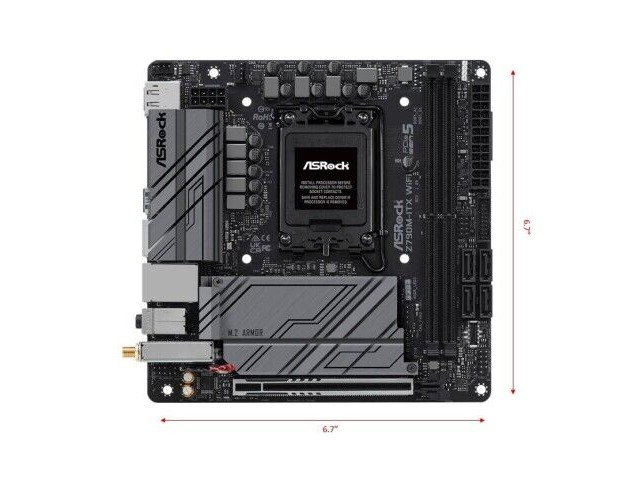

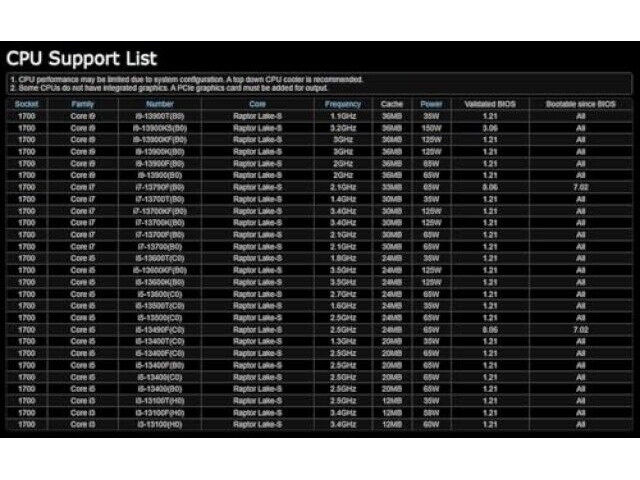

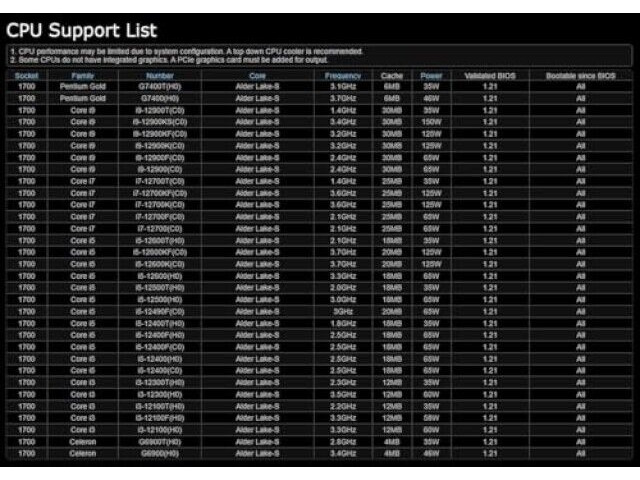

The ASRock Z790M-ITX WiFi motherboard is a compact yet powerful mini-ITX motherboard designed for high-performance computing and gaming. It supports the latest 13th Gen and 12th Gen Intel Core processors, making it ideal for users looking to build a system with cutting-edge CPU performance. The motherboard features a robust 7+1+1 phase power design with Dr.MOS technology for VCore and GT, ensuring stable and efficient power delivery to the CPU, which is crucial for maintaining performance under heavy workloads or during overclocking.

Equipped with two DDR5 DIMM slots, the motherboard supports high-speed memory configurations, with the ability to handle up to 6800 MHz (overclocked) memory modules. This makes it suitable for users who require fast memory access for tasks such as video editing, 3D rendering, or high-end gaming. The motherboard also includes a single PCIe 5.0 x16 slot, allowing for the installation of the latest high-performance graphics cards that take advantage of PCIe 5.0 bandwidth.

For display output, the motherboard provides multiple options, including one HDMI port, one DisplayPort, and one eDP (embedded DisplayPort) interface. This versatility allows users to connect to a variety of monitors or displays depending on their setup needs. The audio capabilities are enhanced by the Realtek ALC897 audio codec and Nahimic Audio software, delivering high-quality 7.1-channel HD audio for an immersive multimedia experience.

Storage options on the motherboard are extensive, featuring two Hyper M.2 slots—one supporting PCIe Gen4x4 and the other supporting both PCIe Gen4x4 and SATA3. Additionally, there are four SATA3 ports for traditional hard drives or SSDs. The USB connectivity is also well-rounded, with a mix of USB 3.2 Gen2x2 Type-C and Type-A ports, as well as USB 3.2 Gen1 and USB 2.0 ports for backward compatibility with older peripherals.

Networking is handled by dual Intel LAN ports—2.5G and 1G—providing fast and reliable wired internet connections. For wireless connectivity, the motherboard includes support for Wi-Fi 6E (802.11ax) and Bluetooth, ensuring seamless wireless communication with other devices.



Brand: ASRock
Model: Z790M-ITX WiFi

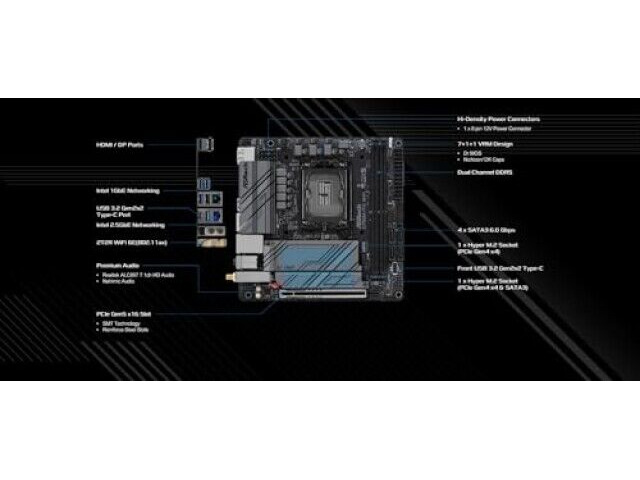

Specifications: Supports 13th Gen & 12th Gen Intel Core Processors; 7+1+1 Phase Power Design; Dr.MOS for VCore+GT; 2 x DDR5 DIMMs (up to 6800+(OC)); 1 PCIe 5.0 x16; HDMI, DisplayPort, eDP; Realtek ALC897 Audio Codec; Nahimic Audio; 2 Hyper M.2 (PCIe Gen4x4 & SATA3); 4 SATA3; USB 3.2 Gen2x2 Type-C (Front & Rear); USB 3.2 Gen2 Type-A (Rear); USB 3.2 Gen1 & USB 2.0; Intel® 2.5G LAN & Intel® 1G LAN; Wi-Fi 6E + Bluetooth
Features: Mini-ITX form factor; High-speed DDR5 support; PCIe 5.0 graphics slot; Multiple display outputs; Advanced audio features; Comprehensive storage options; Robust networking capabilities
