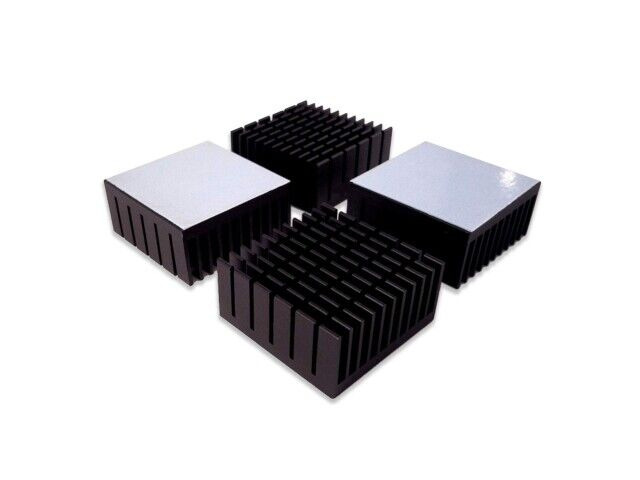

Aluminium Heatsink Kit 40x40x20mm with 3M8810 Thermal Tape for 3D Printer Stepper Motor TEC1-12706 Peltier Cooler

This heatsink kit is designed for efficient cooling of 3D printer stepper motors and thermoelectric Peltier modules like the TEC1-12706. It features a 40x40x20mm extruded aluminum body with vertical and horizontal grooves to enhance heat dissipation. The anodized black finish provides durability and a sleek appearance while resisting corrosion. The included 3M 8810 thermal tape ensures secure and conductive attachment to the component being cooled.

The heatsink is made from 6063-T5 aluminum alloy, known for its high thermal conductivity of 201 W/m.K and structural stability. This material choice ensures effective heat transfer while keeping the component lightweight. The vertical fin design increases surface area, allowing for better air circulation and faster cooling. The dimensions are ideal for compact spaces commonly found in 3D printer setups.

The pre-applied 3M 8810 tape has a thermal conductivity of 0.60 W/m-K and is RoHS compliant, ensuring safe and efficient use. It simplifies installation by eliminating the need for additional adhesives or fasteners. The kit includes four heatsinks, making it suitable for multiple components or backup purposes. The tape adheres well to both the heatsink and the surface it is applied to, ensuring long-term performance.

This kit is compatible with NEMA 17 stepper motors and TEC1-12706 Peltier coolers, making it a versatile solution for various 3D printing applications. It is easy to mount using the provided adhesive tape, requiring no special tools or expertise. Users should ensure the surface is clean and dry before applying the heatsink for optimal thermal performance.

Brand: Easycargo
Model: 404020B08-3M-8810

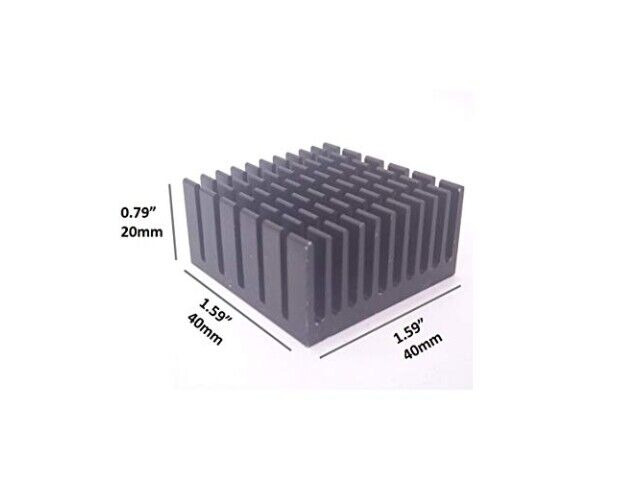

Specifications: 40x40x20mm, 6063-T5 aluminum, 201 W/m.K thermal conductivity, 3M 8810 tape
Features: Anodized black finish, vertical fin design, pre-applied adhesive tape, RoHS compliant
